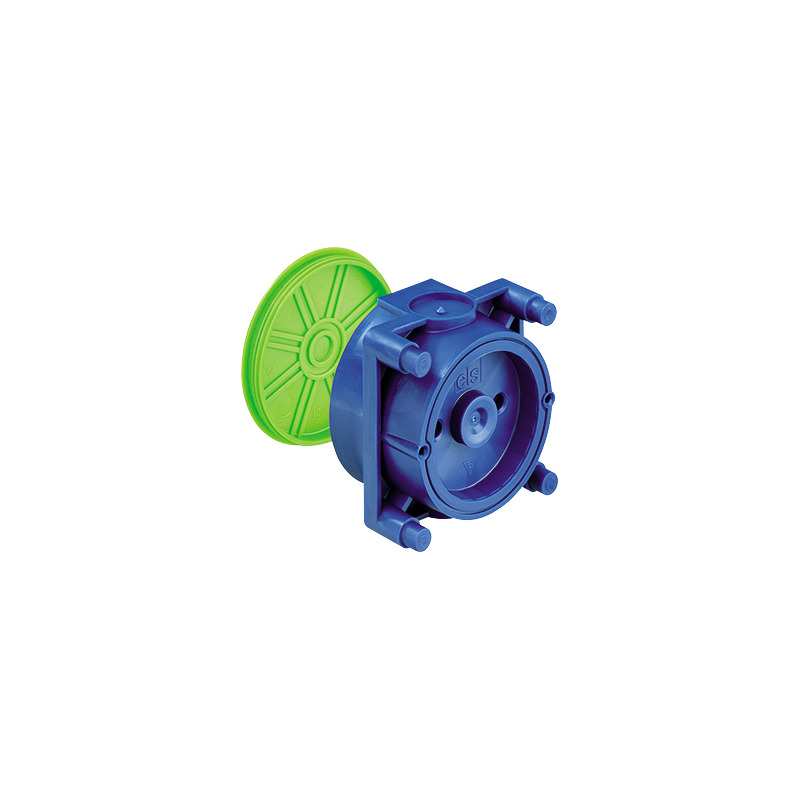

Receptacle, for extremely thin walls, only 45 mm deep, combinable with corresponding binocular-like connectors, protection class IP30, rated insulation voltage: 400V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), Halogen free

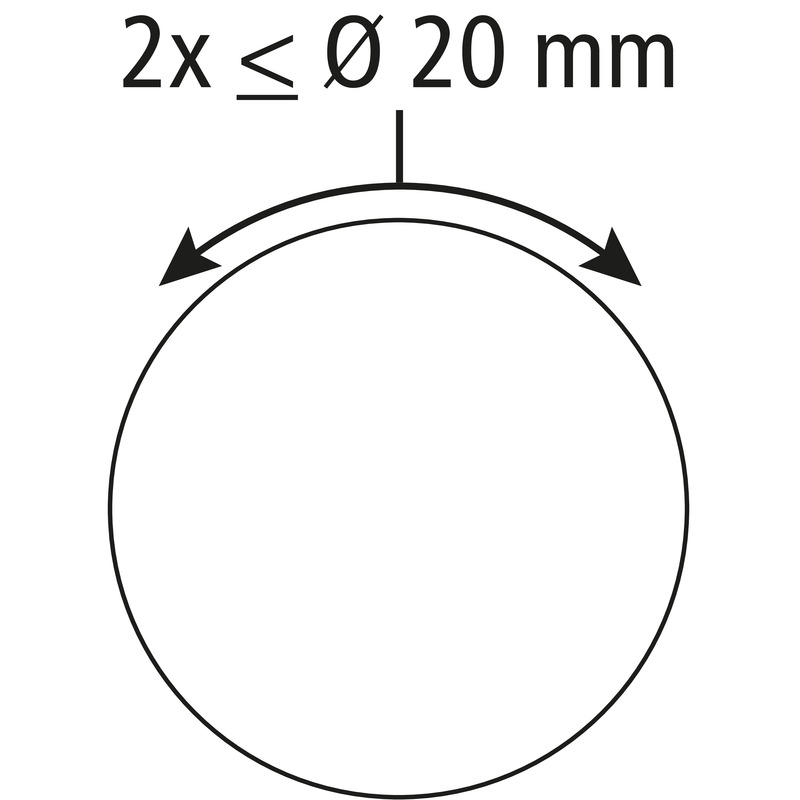

magnet and nail installation, membrane for perforation, sealing range M16 - M20, support spar compatible
| Rated insulation voltage AC | 400 V |
|---|---|
| Type of protection | IP30 |
| UL Type Rating | not specified |
| Cover colour | other |
|---|
| Width | 71 mm |
|---|---|
| Length | 71 mm |
| Height | 50 mm |
| Weight | 0.041 kg |
| Halogen free | yes |
|---|
| Type of fastening | magnet and nail installation |
|---|
| max. relative humidity 25°C | - % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| EAN | 4013902887927 |
|---|---|
| ETIM Class | EC002601 |
| Custom tariff number | 39269097 |
| Minimum order quantity | 1 |
| Base unit material | Polypropylene |
|---|---|
| Cover material | Polypropylene |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|
| EAN / GTIN | 4013902347162 |
|---|---|
| Width | 0.457 m |
| Weight | 4.52 kg |
| Height | 0.432 m |
| Quantity | 100 pieces |
| Depth | 0.23 m |
| EAN / GTIN | 4013902347179 |
|---|---|
| Width | 0.8 m |
| Weight | 144.56 kg |
| Height | 1.86 m |
| Quantity | 2800 pieces |
| Depth | 1.2 m |
| EAN / GTIN | 4013902887927 |
|---|---|
| Width | 0.071 m |
| Weight | 0.041 kg |
| Height | 0.05 m |
| Quantity | 1 pieces |
| Depth | 0.071 m |
