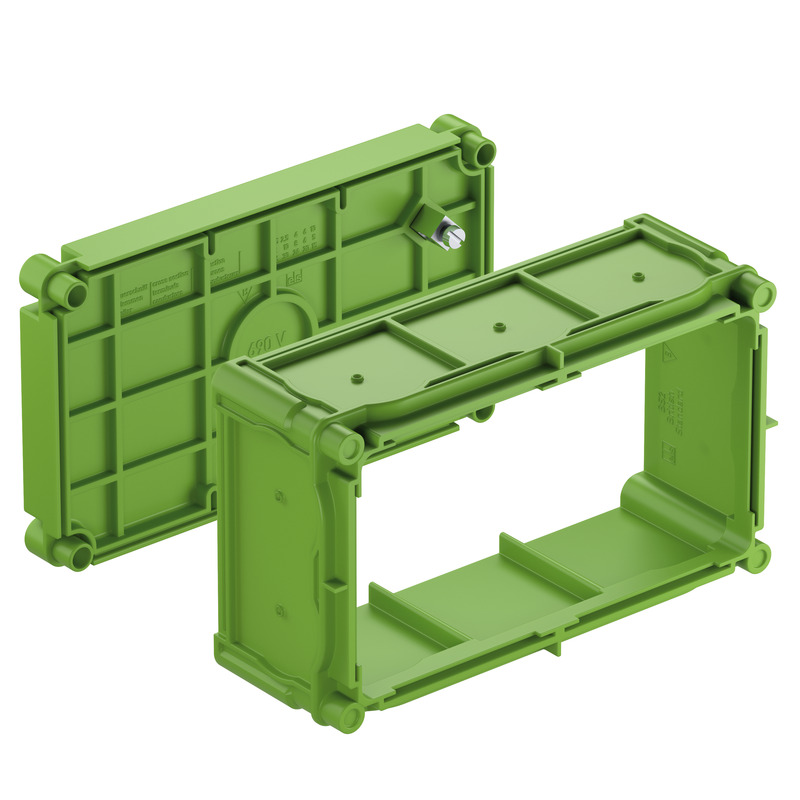

Equipment installation box
Productnumber: 98790201 | Dimensions: 86 x 146 x 60 mm
Equipment installation box, 2-way box for installing "British Standard" equipment; screw spacing 120.6 mm (4 3/4 inch.), protection class IP30, rated insulation voltage: 400V AC, Halogen free

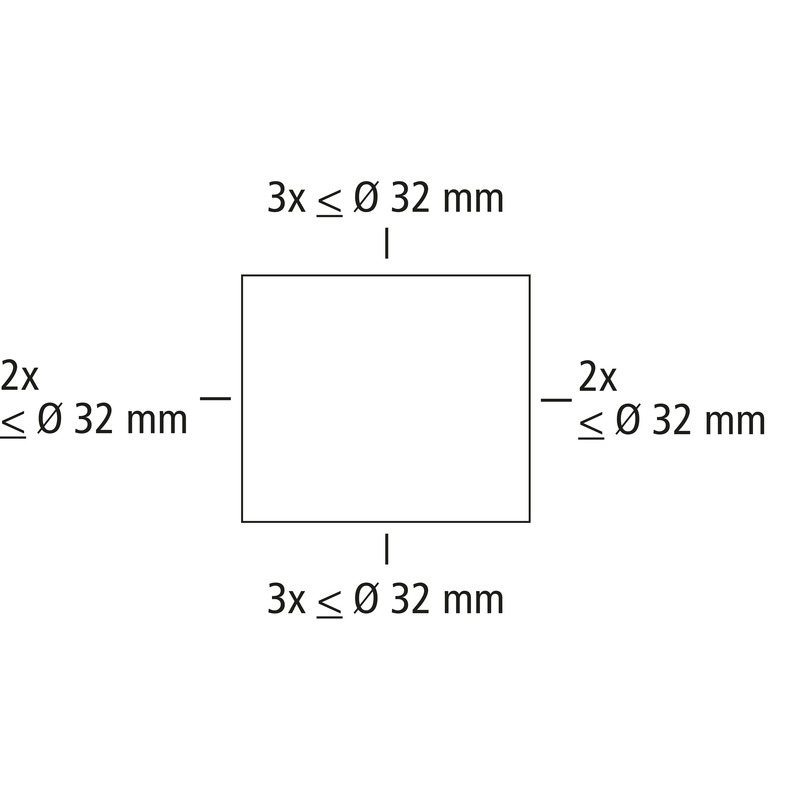

open front section for special magnetic clip, magnet installation, membrane for perforation, sealing range M16 - M32, support spar compatible
Accessories supplied:
Earthing screw
| Rated insulation voltage AC | 400 V |
|---|---|
| Type of protection | IP30 |
| Suitable for | Concrete construction |
| UL Type Rating | not specified |
| Base unit colour | green |
|---|---|
| Cover colour | green |
| Width | 86 mm |
|---|---|
| Length | 146 mm |
| Height | 60 mm |
| Inner length | 128 mm |
| Inner width | 68 mm |
| Inner height | 37 mm |
| Halogen free | yes |
|---|---|
| Flammability class according with UL94 | HB |
| Glow-wire flammability according to EN 60695-2-11 | 650 °C |
| Industry quality | no |
| Type of fastening | magnet installation |
|---|
| max. relative humidity 25°C | - % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Base unit material | Plastic |
|---|---|
| Cover material | Polypropylene |
