#97700201 | Dimensions: 116 x 111 x 61 mm

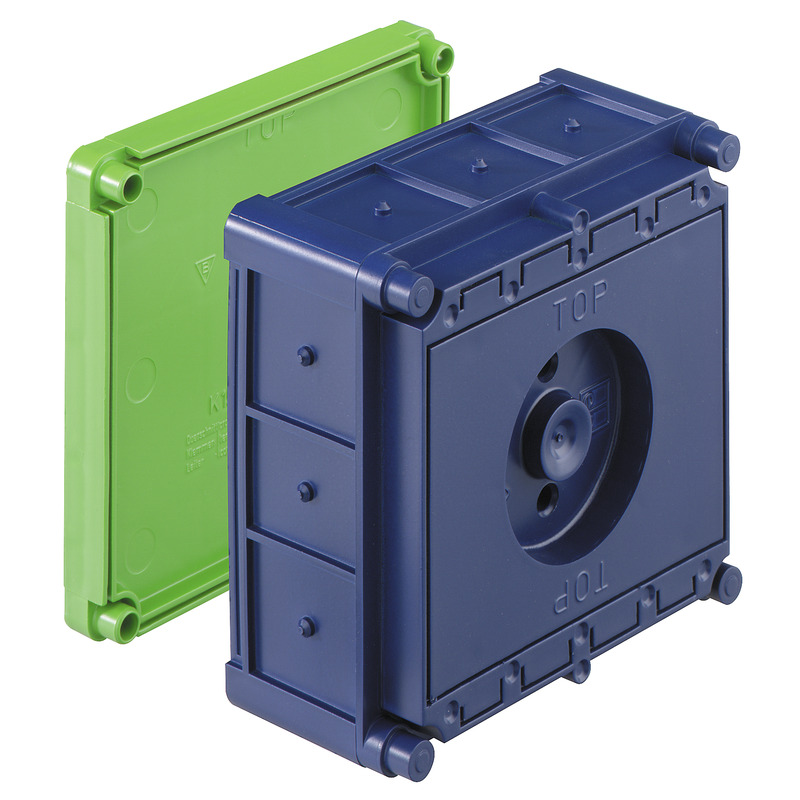

Mounting box

K15 EK

Mounting box, suitable as a junction box with large terminal space, screw spacing 2 x 83.5 mm (3 9/32 inch) and 1 x 100 mm, complies with AFI standard, for installing "American Standard"...

Login to see price

Remember product

Description

Mounting box, suitable as a junction box with large terminal space, screw spacing 2 x 83.5 mm (3 9/32 inch) and 1 x 100 mm, complies with AFI standard, for installing "American Standard" equipment acc. to NEMA Publ. NO.OS 1, corresponds to the »''4" square box« for 2 units, combinable, protection class IP30, rated insulation voltage: 400V AC, Halogen free

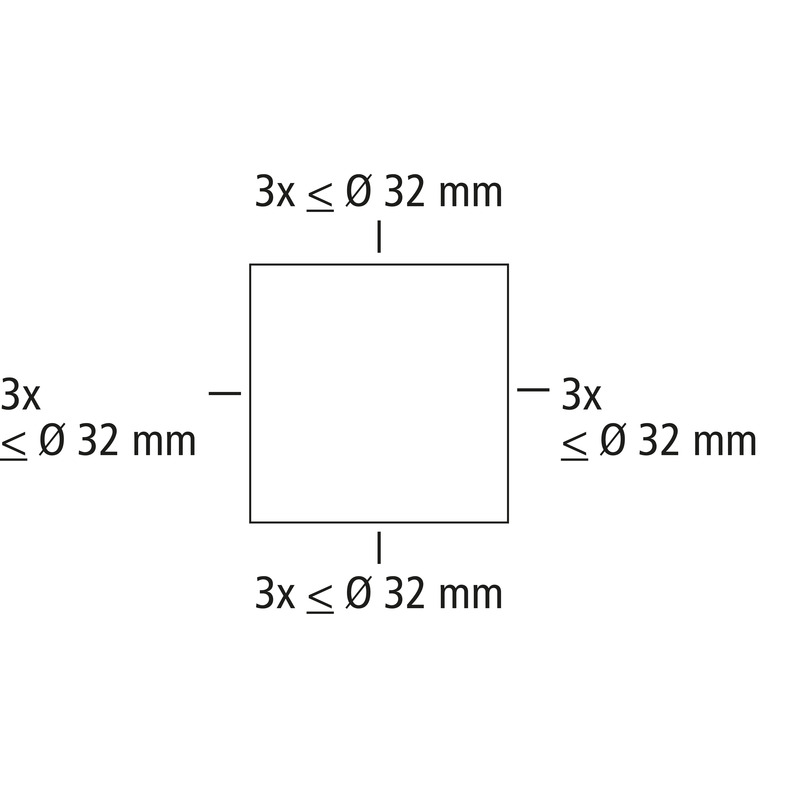

for Spelsberg HM-UNI (97929901), magnet and nail installation, membrane for perforation, sealing range M16 - M32, support spar compatible

Technical Data

electrical characteristics

Rated insulation voltage AC	400 V
Type of protection	IP30
Suitable for	Concrete construction
UL Type Rating	not specified

Colours

Cover colour	other

Dimensions

Width	116 mm
Length	111 mm
Height	61 mm
Weight	0.1016 kg

Material characteristics

Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability	650 °C (EN 60695-2-11)

mechanical properties

Type of fastening	magnet and nail installation

Ambient conditions

max. relative humidity 25°C	- %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C

Sales Information

EAN	4013902200078
ETIM Class	EC002601
Custom tariff number	39269097
Minimum order quantity	30

Material

Base unit material	Polypropylene
Cover material	Polypropylene

Logistic data

Outer packaging

EAN / GTIN	4013902348497
Width	0.372 m
Weight	3.438 kg
Height	0.372 m
Quantity	30 pieces
Depth	0.262 m

Pallet

EAN / GTIN	4013902348503
Width	0.8 m
Weight	141.768 kg
Height	1.65 m
Quantity	1080 pieces
Depth	1.2 m

Piece

EAN / GTIN	4013902200078
Width	0.116 m
Weight	0.1016 kg
Height	0.061 m
Quantity	1 pieces
Depth	0.111 m
