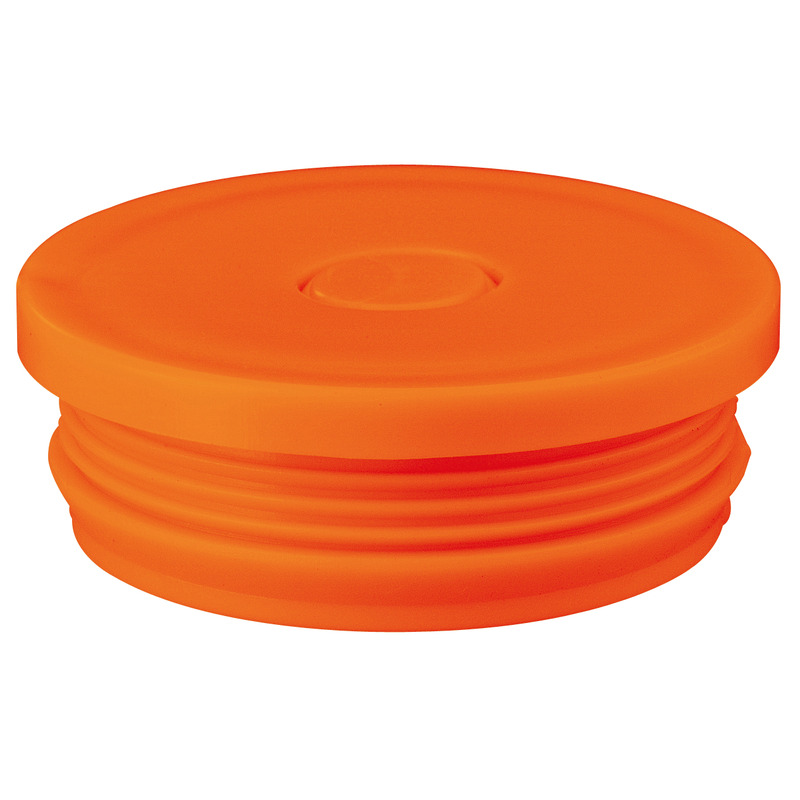

Description
Blanking plugs with closed diaphragm are needed when DAL 1 / DAL 2 are combined one behind the other, for wall thickness 1.5 - 4.0 mm
This article is archived!
Technical Data
electrical characteristics
| Type of protection | IP54 |
|---|---|
| Suitable for | Concrete construction |
Colours
| Accessory colour | other |
|---|
Dimensions
| Width | 24.5 mm |
|---|---|
| Length | 24.5 mm |
| Height | 13.5 mm |
| Weight | 0.0014 kg |
Material characteristics
| UV-resistant | no |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | HB |
| Glow-wire flammability | 650 °C (EN 60695-2-11) |
mechanical properties
| for wall thickness max | 4 mm |
|---|---|
| for wall thickness min | 1.5 mm |
| for sealing range min | 8 mm |
| for sealing range max | 13.5 mm |
Ambient conditions
| Installation location | Indoors |
|---|
Sales Information
| ETIM Class | EC000451 |
|---|---|
| Custom tariff number | 39269097 |
Downloads
Download Data Sheet
Similar products

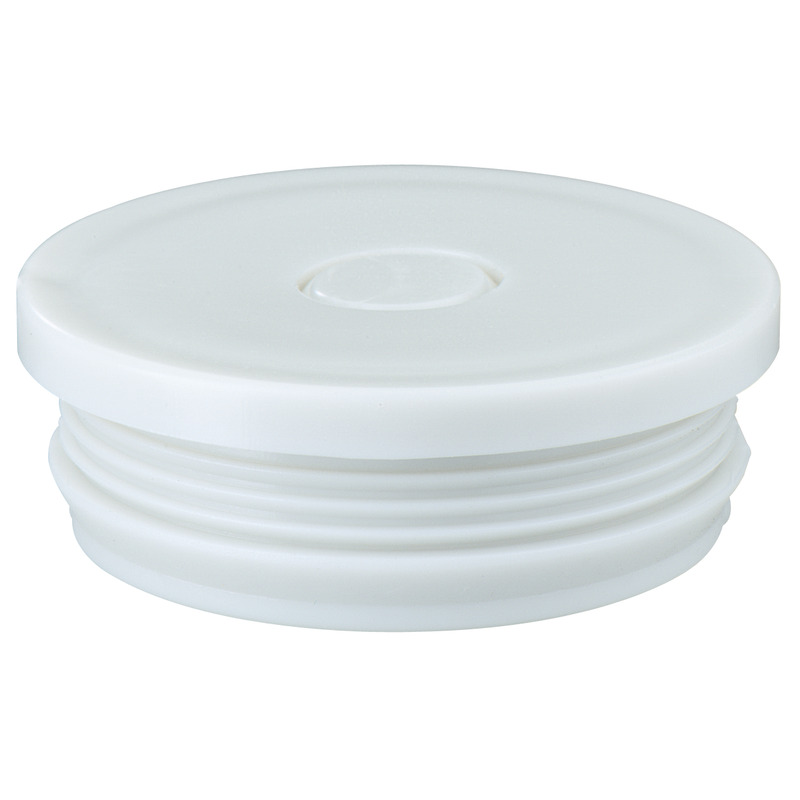

Sealing plugsVST M25/or
