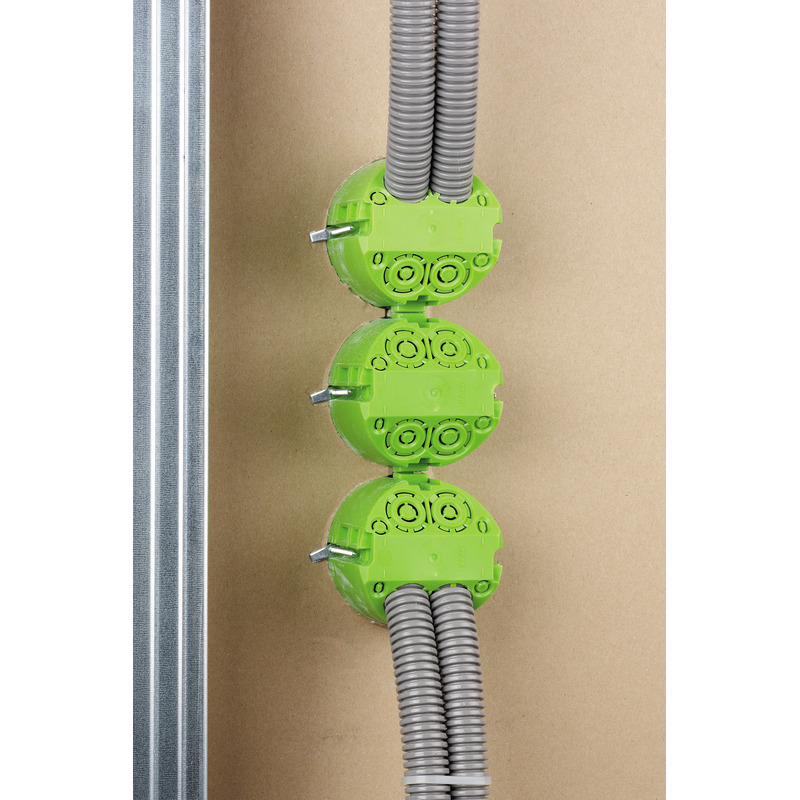

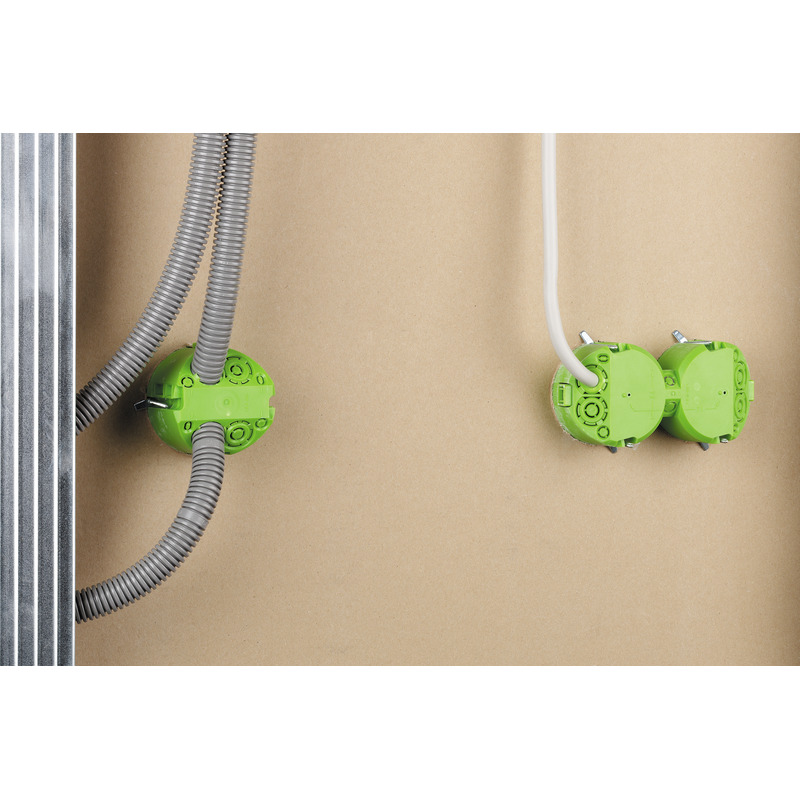

Cavity wall channel junction box, flame resistant, with enlarged connection space, universal socket for plate thicknesses from 1 to 40 mm, with moulded, patented combi jumpers and punching tool, device screw spacing 60 mm
drilled hole Ø 68 mm, 65 mm deep, with coated, patented combi bridges
| Rated insulation voltage AC | 400 V |
|---|---|
| Type of protection | IP30 |
| UL Type Rating | not specified |
| Width | 68 mm |
|---|---|
| Length | 68 mm |
| Height | 65 mm |
| Inner height | 63 mm |
| Weight | 0.028 kg |
| Halogen free | no |
|---|---|
| Flammability class according with UL94 | HB |
| Glow-wire flammability | 850 °C (EN 60695-2-11) |
| max. relative humidity 25°C | - % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | Indoors |
| EAN | 4013902170524 |
|---|---|
| ETIM Class | EC002601 |
| Custom tariff number | 39269097 |
| Minimum order quantity | 80 |
| Base unit material | Plastic |
|---|---|
| Cover material | Polypropylene |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|
| EAN / GTIN | 4013902399536 |
|---|---|
| Width | 0.34 m |
| Weight | 0.28 kg |
| Height | 0.065 m |
| Quantity | 10 pieces |
| Depth | 0.135 m |
| EAN / GTIN | 4013902345779 |
|---|---|
| Width | 0.367 m |
| Weight | 2.607 kg |
| Height | 0.292 m |
| Quantity | 80 pieces |
| Depth | 0.295 m |
| EAN / GTIN | 4013902345786 |
|---|---|
| Width | 0.8 m |
| Weight | 84.568 kg |
| Height | 1.79 m |
| Quantity | 1920 pieces |
| Depth | 1.2 m |
| EAN / GTIN | 4013902170524 |
|---|---|
| Width | 0.068 m |
| Weight | 0.028 kg |
| Height | 0.065 m |
| Quantity | 1 pieces |
| Depth | 0.068 m |
