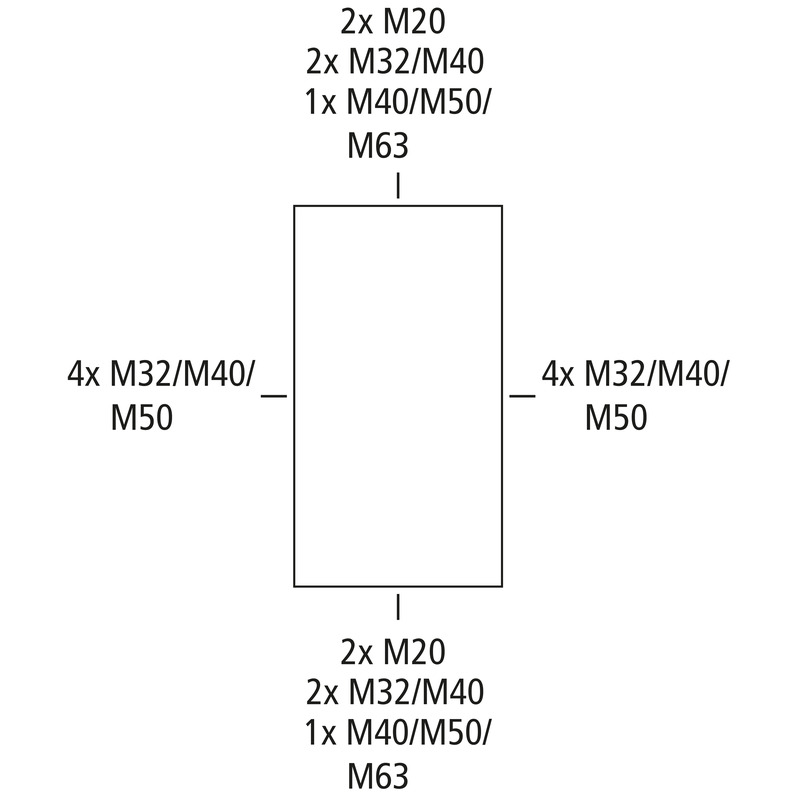

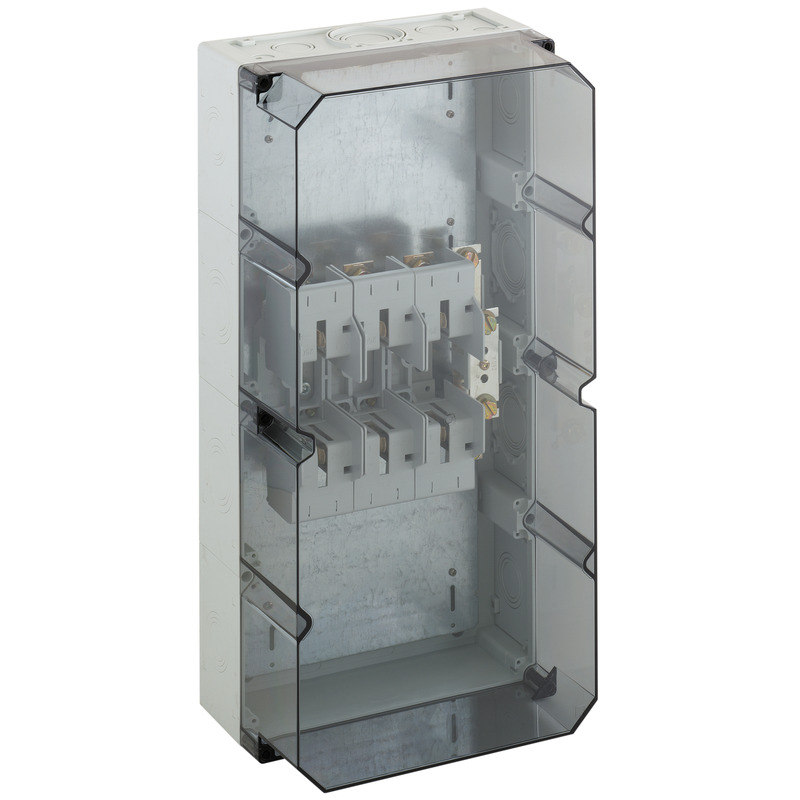

NH fuse enclosure, IP65 (when using the corresponding cable infeeds), 1 x NH 1 fuse base, assembled on mounting plate, Rated current 224 A, Screw connection M10, N terminal M10, with IP54 attachment bushes, with insulating seals
with transparent cover
| Rated operating voltage AC | 690 V |
|---|---|
| Protection class | II |
| Type of protection | IP54/IP65 |
| Rated current | 224 A |
| UL Type Rating | not specified |
| Base unit colour | grey |
|---|---|
| Cover colour | transparent |
| Width | 300 mm |
|---|---|
| Length | 600 mm |
| Height | 210 mm |
| Weight | 6.39 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | V2 |
| Glow-wire flammability | 850 °C (EN 60695-2-11) |
| Impact strength | IK08 |
|---|---|
| Sealable | yes |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | protected outdoor areas |
| ETIM Class | EC000100 |
|---|---|
| Custom tariff number | 85369095 |
| Base unit material | Polycarbonate |
|---|---|
| Cover material | Polycarbonate |
| Sealing material | Polyurethane |
| Cover screw material | Polyamide, glass-fibre reinforced |
