Description

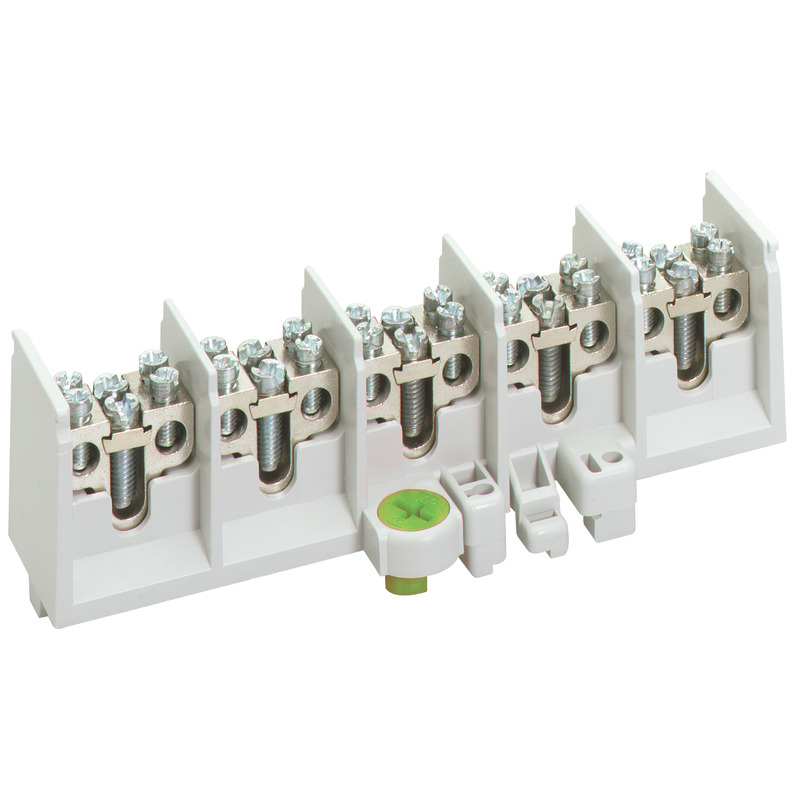

Main line T-piece terminal with connection cross-section 1 x 35 mm² per pole and 2 x 25 mm² outputs per pole
5-pole - 35/25 mm²
This article is archived!
Technical Data
electrical characteristics
| Rated operating voltage AC | 400 V |
|---|---|
| Number of poles | 5 |
| Connection 1: Connection type | Screws |
| Connection 1: Suitable for Cu conductors | 1 |
| Connection 1: Connectable conductor cross-section, fine-wire with ferrule (min) | 2.5 mm² |
| Connection 1: Connectable conductor cross-section, fine-wire with ferrule (max) | 25 mm² |
| Connection 1: Connectable conductor cross-section, single-wire (min) | 2.5 mm² |
| Connection 1: Connectable conductor cross-section, single-wire (max) | 35 mm² |
| Connection 1: Connectable conductor cross-section, stranded (min) | 2.5 mm² |
| Connection 1:Connectable conductor cross-section, stranded (max) | 35 mm² |
| Connection 2: Connection type | Screws |
| Connection 2: Suitable for Cu conductors | 1 |
| Connection 2: Connectable conductor cross-section, fine-wire with ferrule (min) | 2.5 mm² |
| Connection 2: Connectable conductor cross-section, fine-wire with ferrule (max) | 16 mm² |
| Connection 2: Connectable conductor cross-section, single-wire (min) | 2.5 mm² |
| Connection 2: Connectable conductor cross-section, single-wire (max) | 25 mm² |
| Connection 2: Connectable conductor cross-section, stranded (min) | 2.5 mm² |
| Connection 2: Connectable conductor cross-section, stranded (max) | 25 mm² |
Dimensions
| Width | 192 mm |
|---|---|
| Length | 58 mm |
| Height | 58 mm |
| Weight | 0.43 kg |
Material characteristics
| Flammability class according with UL94 | V0 |
|---|---|
| Glow-wire flammability | 960 °C (EN 60695-2-11) |
mechanical properties
| Connection 1: Tightening moment | 3.5 Nm |
|---|---|
| Connection 2: Tightening torque | 3.5 Nm |
Sales Information
| EAN | 4013902091096 |
|---|---|
| ETIM Class | EC000275 |
| Custom tariff number | 85369010 |
| Minimum order quantity | 1 |
Logistic data
Piece
| EAN / GTIN | 4013902091096 |
|---|---|
| Width | 0.192 m |
| Weight | 0.43 kg |
| Height | 0.058 m |
| Quantity | 1 pieces |
| Depth | 0.058 m |
Outer packaging
| EAN / GTIN | 4013902343492 |
|---|---|
| Width | 0.357 m |
| Weight | 10.965 kg |
| Height | 0.127 m |
| Quantity | 25 pieces |
| Depth | 0.257 m |
Pallet
| EAN / GTIN | 4013902343508 |
|---|---|
| Width | 0.8 m |
| Weight | 1202.22 kg |
| Height | 1.67 m |
| Quantity | 2700 pieces |
| Depth | 1.2 m |
Downloads
Download Data Sheet
Similar products

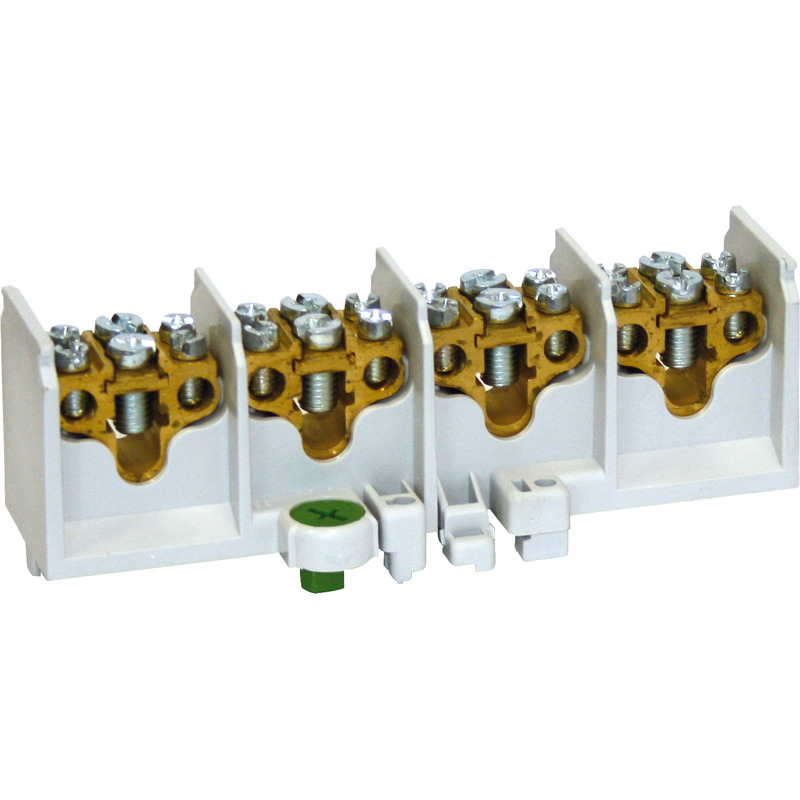

Main cable junction terminalHA 35-42
