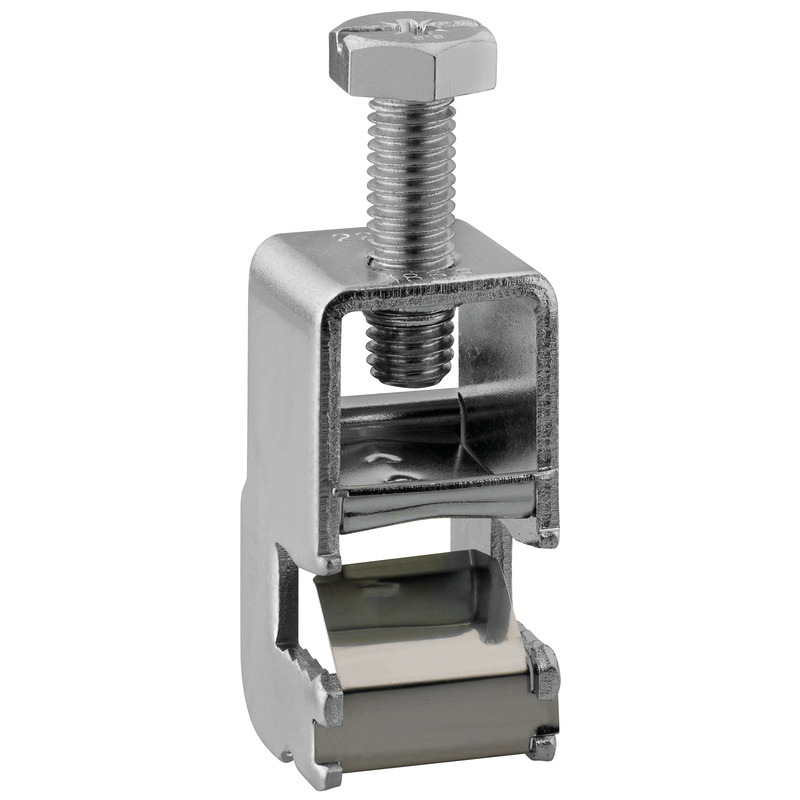

Description
Busbar terminal, for copper rails 12/20/25/30 x 10 mm
for CU conductor 1x (50-185mm²) re/rm/sm/rf+AE
#07511801 | Dimensions: 28,5 x 29 x 53 mm
Busbar terminal
Technical Data
electrical characteristics
| Max. conductor cross section | 185 mm² |
|---|---|
| Rated current | 500 A |
| Number of poles | 1 |
| shockproof | No |
| Connection 1: Connection type | Screws |
| Connection 1: Clamping points per pole | 1 |
| Connection 1: Suitable for Cu conductors | 1 |
| Connection 1: Suitable for Al conductors | 0 |
| Connection 1: Connectable conductor cross-section, single-wire (min) | 50 mm² |
| Connection 1: Connectable conductor cross-section, single-wire (max) | 185 mm² |
| Connection 1: Connectable conductor cross-section, stranded (min) | 16 mm² |
| Connection 1:Connectable conductor cross-section, stranded (max) | 185 mm² |
Dimensions
| Width | 28.5 mm |
|---|---|
| Length | 29 mm |
| Height | 53 mm |
| Weight | 0.1038 kg |
mechanical properties
| Connection 1: Tightening moment | 20 Nm |
|---|
Sales Information
| EAN | 4013902623105 |
|---|---|
| ETIM Class | EC000001 |
| Custom tariff number | 85369010 |
| Minimum order quantity | 1 |
Logistic data
Outer packaging
| EAN / GTIN | 4013902623112 |
|---|---|
| Width | 0.357 m |
| Weight | 2.81 kg |
| Height | 0.127 m |
| Quantity | 25 pieces |
| Depth | 0.257 m |
Pallet
| EAN / GTIN | 4013902623129 |
|---|---|
| Width | 0.8 m |
| Weight | 325.48 kg |
| Height | 1.67 m |
| Quantity | 2700 pieces |
| Depth | 1.2 m |
Piece
| EAN / GTIN | 4013902623105 |
|---|---|
| Width | 0.029 m |
| Weight | 0.1038 kg |
| Height | 0.053 m |
| Quantity | 1 pieces |
| Depth | 0.029 m |
Downloads
Download Data Sheet
Similar products

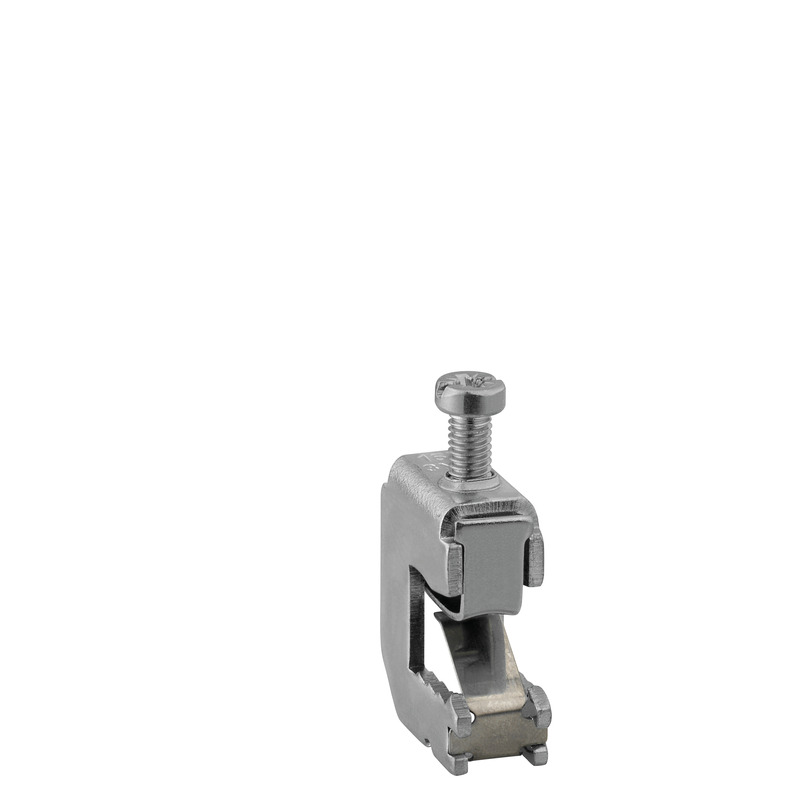

Busbar terminalSKL 116
Busbar terminal
SKL 116
Productnumber 07511601
for CU conductor 1x (1.5-16 mm²) re/rm/rf+AE
Busbar terminal, for copper rails 12/20/25/30 x 10 mm

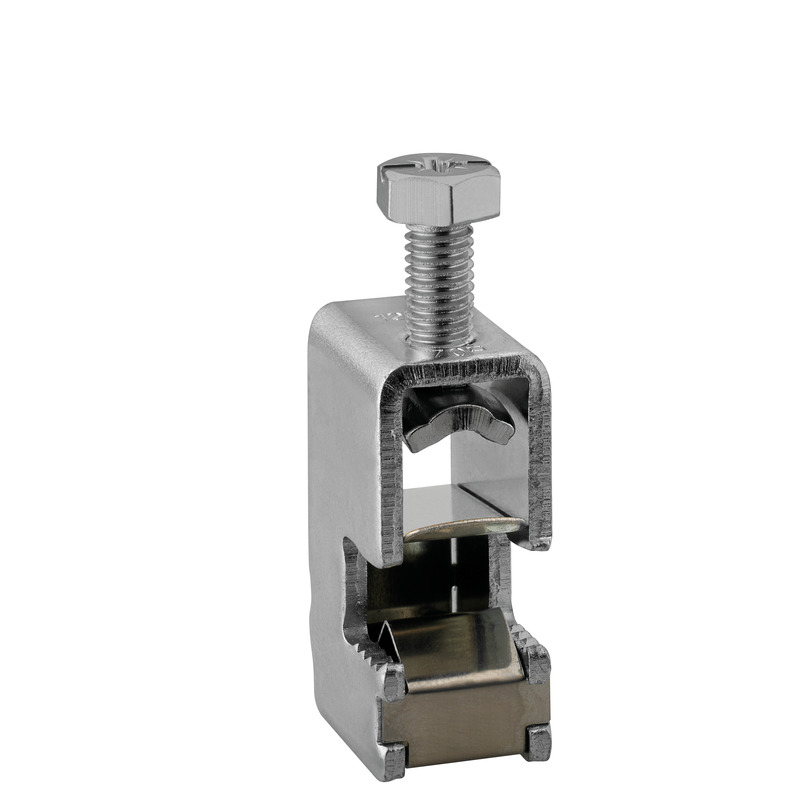

Busbar terminalSKL 135
Busbar terminal
SKL 135
Productnumber 07513501
for CU conductor 1x (4-35mm²) re/rm/sm/rf+AE,
lam. Flat copper...
Busbar terminal, for copper rails 12/20/25/30 x 10 mm

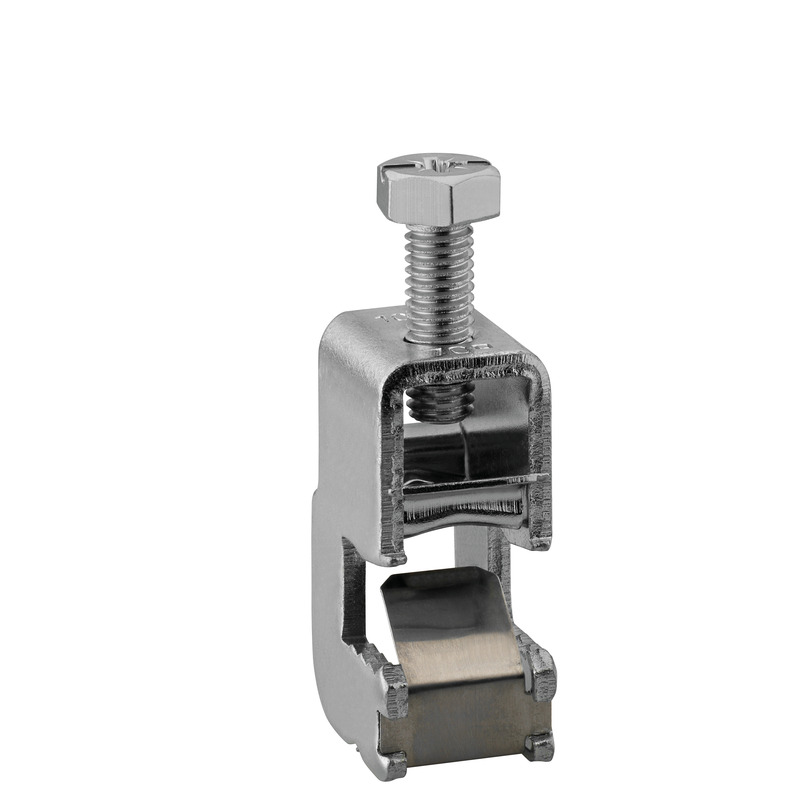

Busbar terminalSKL 170
Busbar terminal
SKL 170
Productnumber 07517001
for CU conductor 1x (16-70mm²) re/rm/sm/rf+AE,
lam. Flat copper...
Busbar terminal, for copper rails 12/20/25/30 x 10 mm

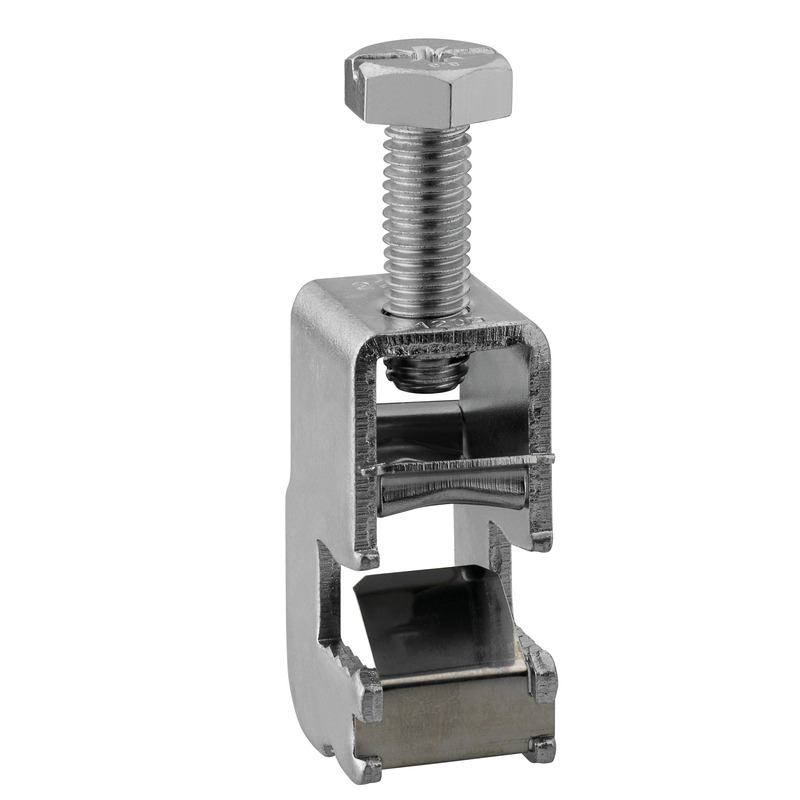

Busbar terminalSKL 112
